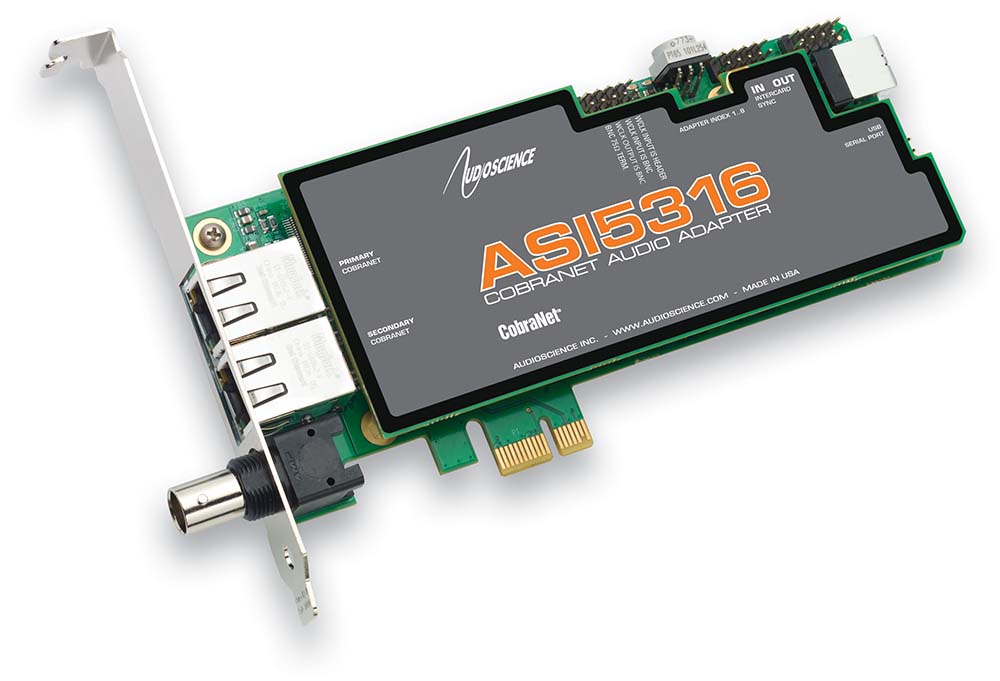

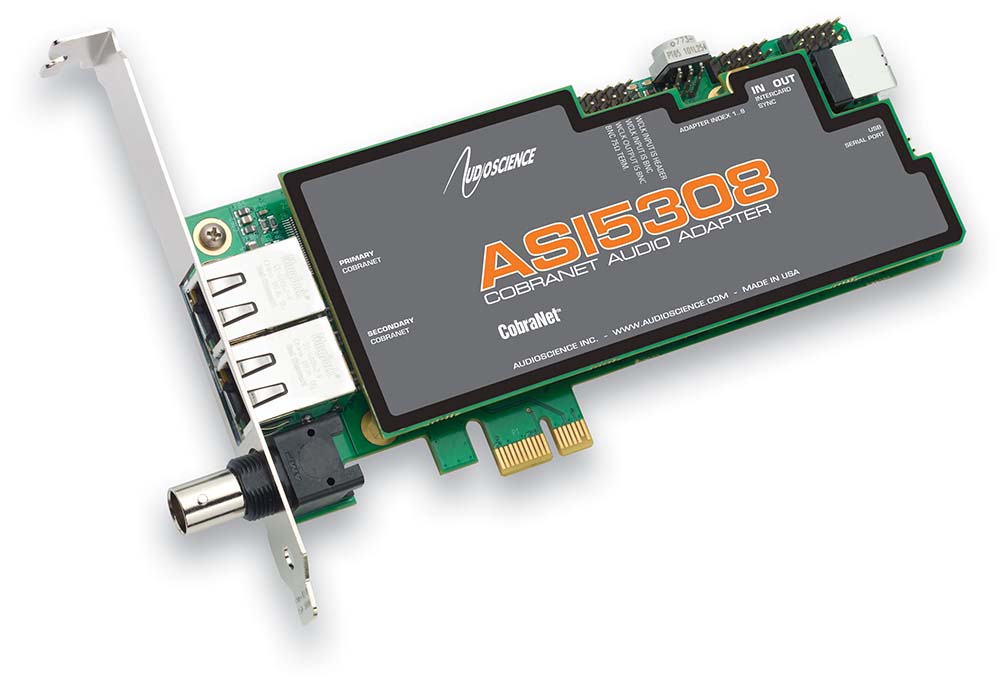

ASI5308, ASI5316, and ASI6316
PCI Express CobraNet Sound Cards
The ASI5308, ASI5316, and ASI6316 are
professional PCI Express CobraNet sound cards designed for use in
the installed sound and entertainment markets.|
Using Cirrus Logic's CobraNet technology for streaming audio over Ethernet, the ASI5308 provides 8 channels of CobraNet receive and transmit and the ASI5316/ASI6316 provides 16 channels of CobraNet receive and transmit. They can be connected to any CobraNet-compliant device and have dual-redundant CobraNet interfaces.
The ASI5308, ASI5316, and ASI6316 are based on the TMS320C6713 VLIW floating point DSP connected to a high-speed bus-master PCI Express interface.
AudioScience's MRX technology allows up to 8 (ASI5308) or 16 (ASI5316/ASI6316) streams of different formats and sample rates to be played, recorded, and mixed over CobraNet. For the ASI5308/ASI5316, a choice of 8, 16, 24, and 32bit PCM is available on all streams. For the ASI6316, a choice of PCM, MP3, or MPEG layer 2 compression is available on all streams.
AudioScience provides ASIControl, an application that allows CobraNet routing connections to be set up between the ASI5308, ASI5316, and ASI6316 and any other compliant CobraNet device on the network. Alternatively, third party CobraNet design and management software may be used.
